VOLTAGE REDUCER 24V TO 12V @ 10 AMPS CONTINUOUS DUAL OUTPUT

VOLTAGE REDUCER 24V TO 12V @ 10 AMPS CONTINUOUS DUAL OUTPUT

$129.95 NZD
$129.95 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.

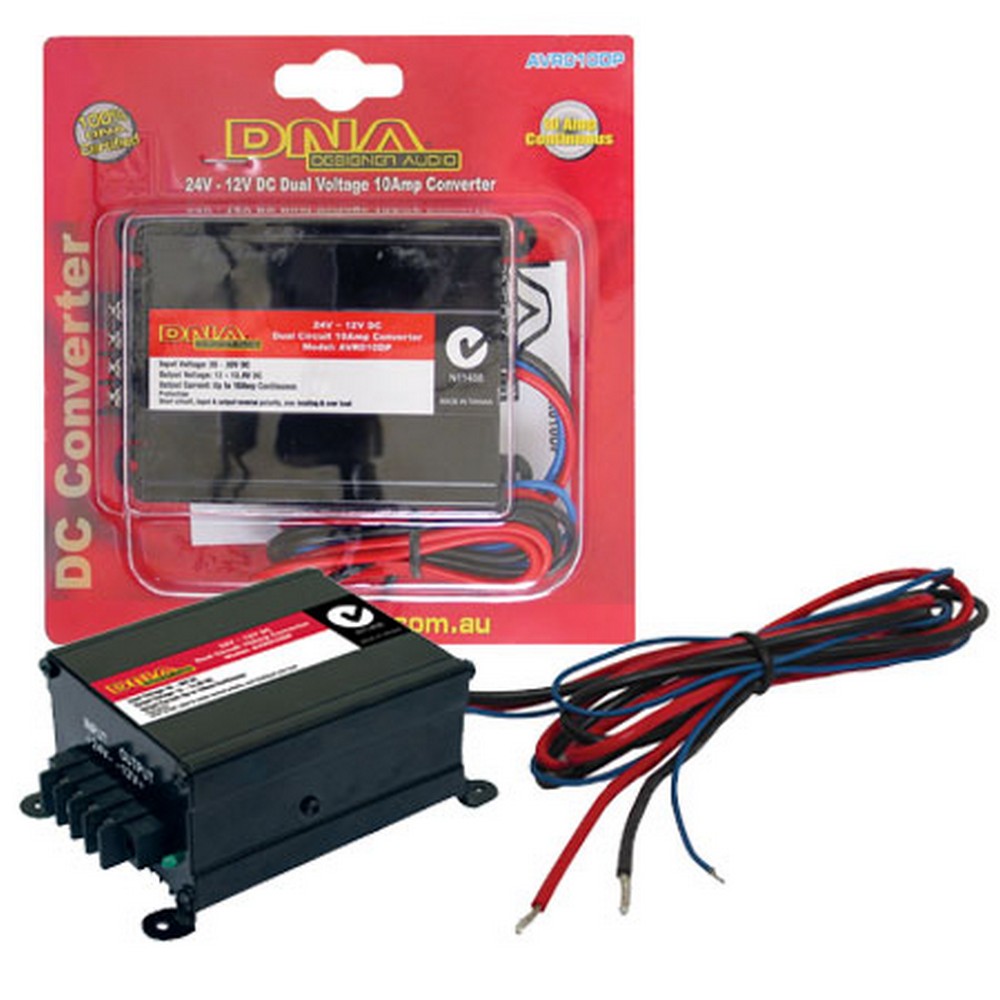

24 Volt DC to 12 volt DC voltage reducer with dual outputs.

Fitted with 2 independent 12VDC outputs.
Output 1: using the terminals on the side of the case.
Output 2: using the 3 wires.
Red: 12VDC postive output
Black: negative output
Blue: 24VDC trigger wire for activating the circuit.

  • Input DC voltage range: DC20~30V DC
  • Output voltage range: 12V~13.8V
  • Continuous power: 10 Amps
  • Peak power: 15 Amps
  • No load current draw: 20mA
  • Max. power efficency: >90%
  • Cooling: Air convection
  • Input polarity reverse: Diode protection
  • Output polarity reverse: Circuit protection
  • Over heating: Circuit protection
  • Over load: Circuit protection
  • Output short: Circuit protection
  • Fuse: 15 Amps
  • Dimension (LxWxH): 90 x 73 x 45mm
  • Weight: 330g
