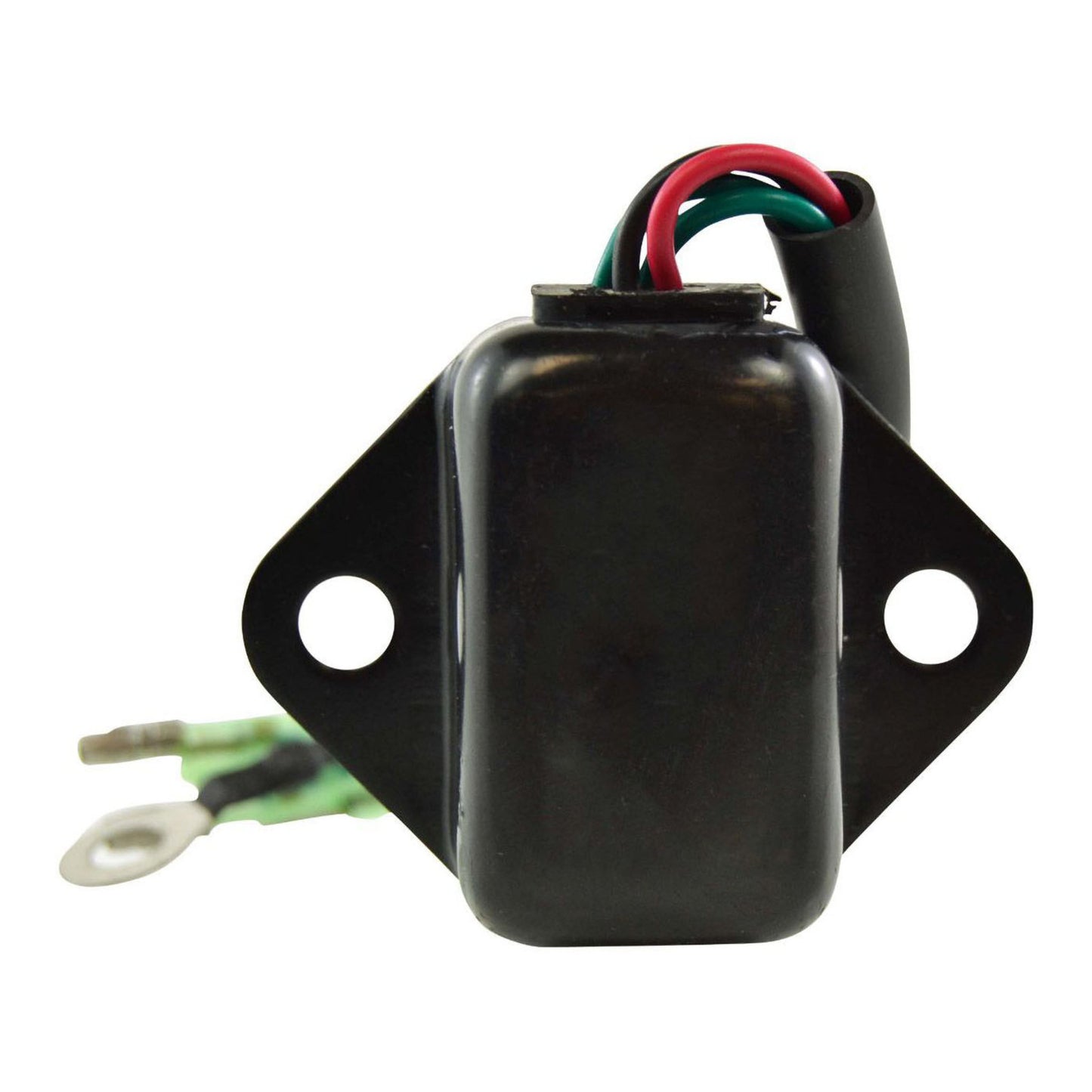

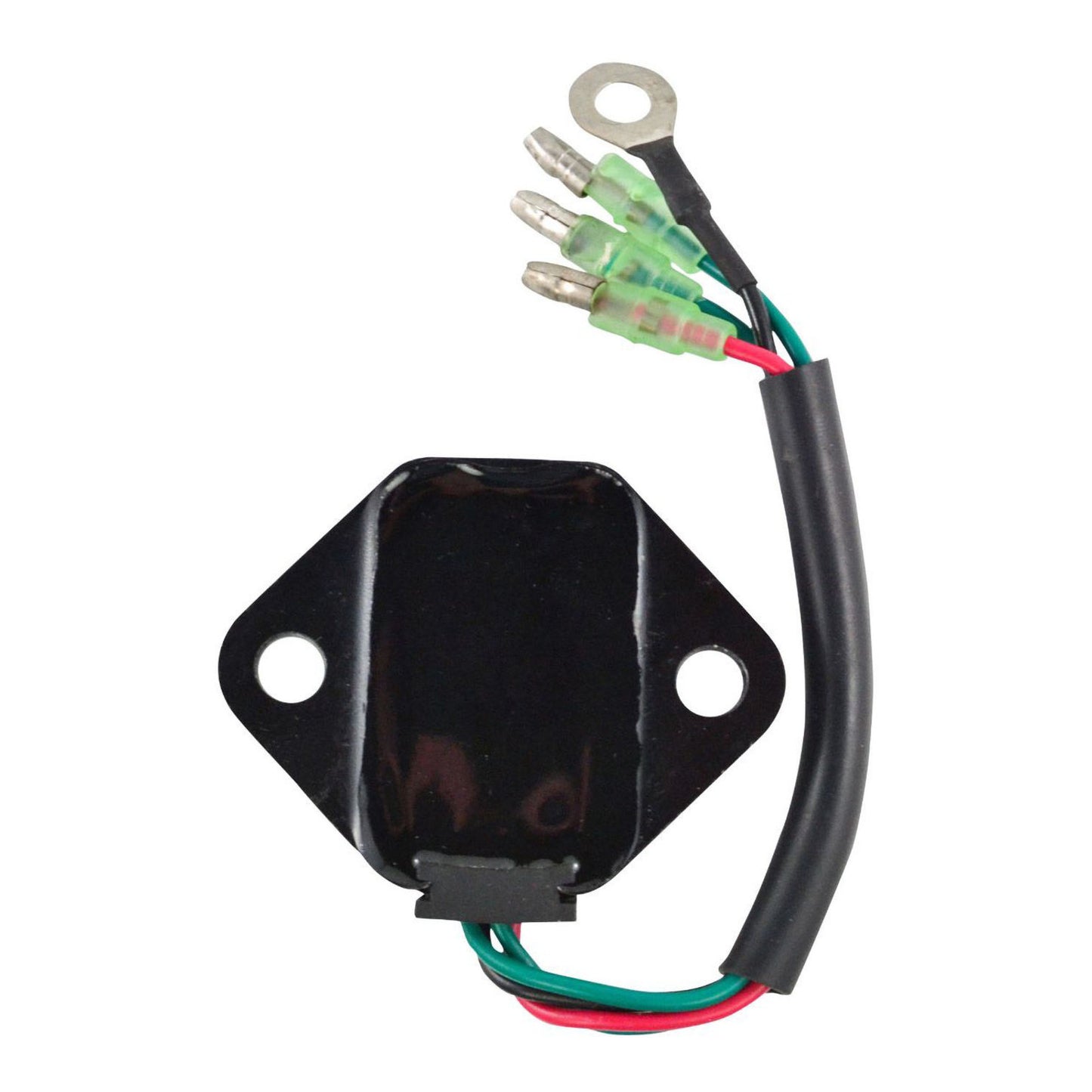

Regulator Rectifier Assorted Yamaha (Refer to Fitments) (RM30922)

Brand new aftermarket voltage regulator rectifier

• AC regulator rectifier
• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• The quality exceeds the OEM equipment
• Higher grade of electric components.
• All products shipped are tested

Dimensions:

• Width: 55 mm
• Length: 45 mm
• Height: 15 mm
• Fixation holes centre to centre: 55 mm

Other specifications:

• Number of pins: 4
• Number of wires: 4
• Minimum Charging Voltage: 14.5V +/- 0.5V
• Maximum Charging Current: 50A/500W
• Open Circuit Voltage: <15V
• Operation Temperature: -20° to 85°

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
