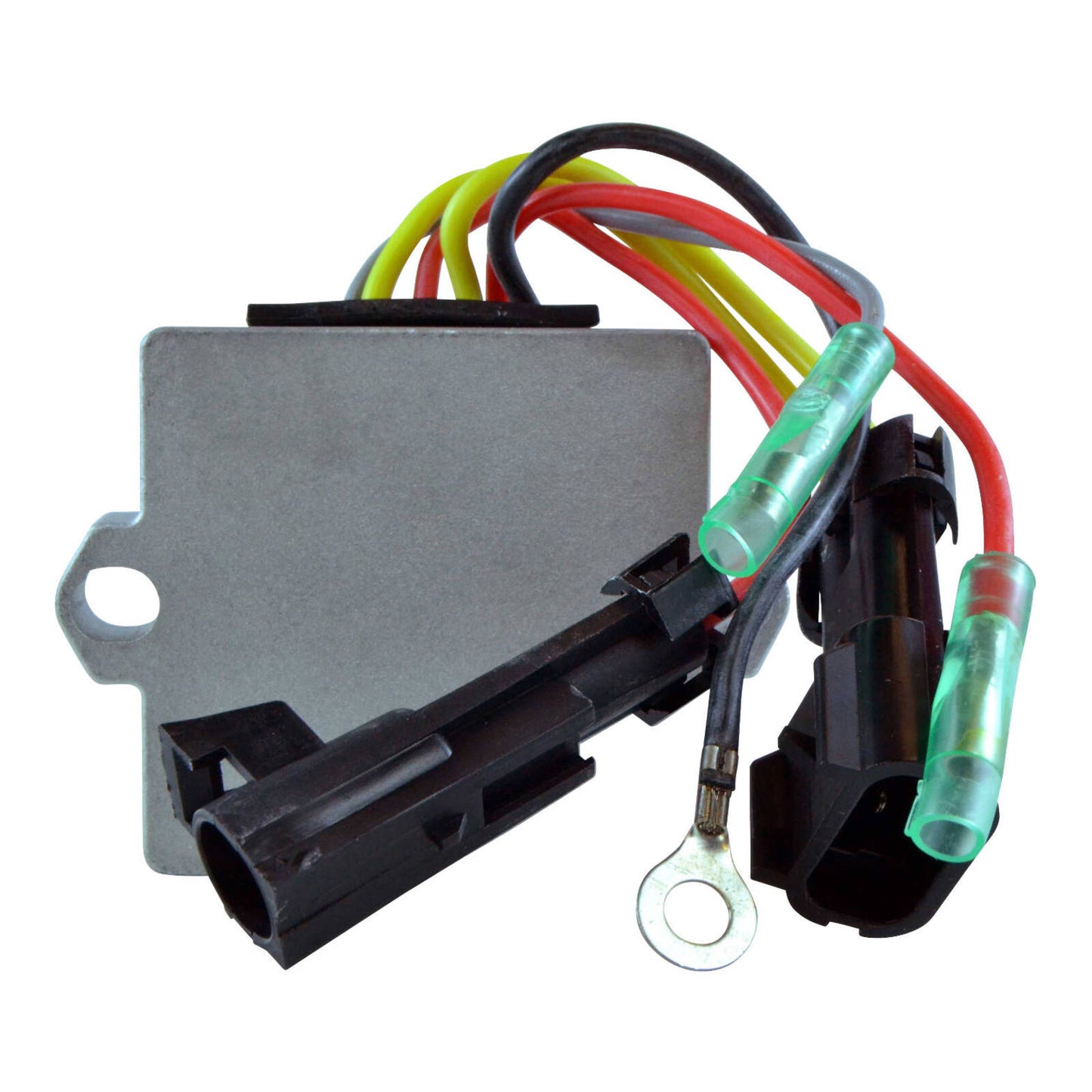

Rectifier Mercury Outboard [Refer to Fitments] (RMS020-104385)

Brand new aftermarket Voltage Regulator Rectifier.

• Direct replacement to the original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required.
• Higher-grade electrical components.
• The quality exceeds the OEM equipment.
• All products shipped are tested.

All item pictures are accurate. If in doubt, do not hesitate to compare the item to the original part.

Before installing the new Voltage Regulator Rectifier:

• Check the AC output of the stator.
• Replace any burned or corroded connectors on the stator and regulator rectifier.
• Check and repair any melted wiring.
• Use high-temperature dielectric grease on all connectors.

Warning:

Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

• Width: 65 mm
• Length: 65 mm
• Height: 25 mm
• Stator wire length: 140 mm
• Battery wire length: 160 mm

Other specifications:

• Number of plugs: 5
• Number of pins: 6
• Number of wires: 6
• Minimum charging voltage: 14.5 V +/- 0.5 V
• Maximum charging current: 50 A / 500 W
• Open circuit voltage: < 15 V
• Operating temperature: -20°C to 85°C
