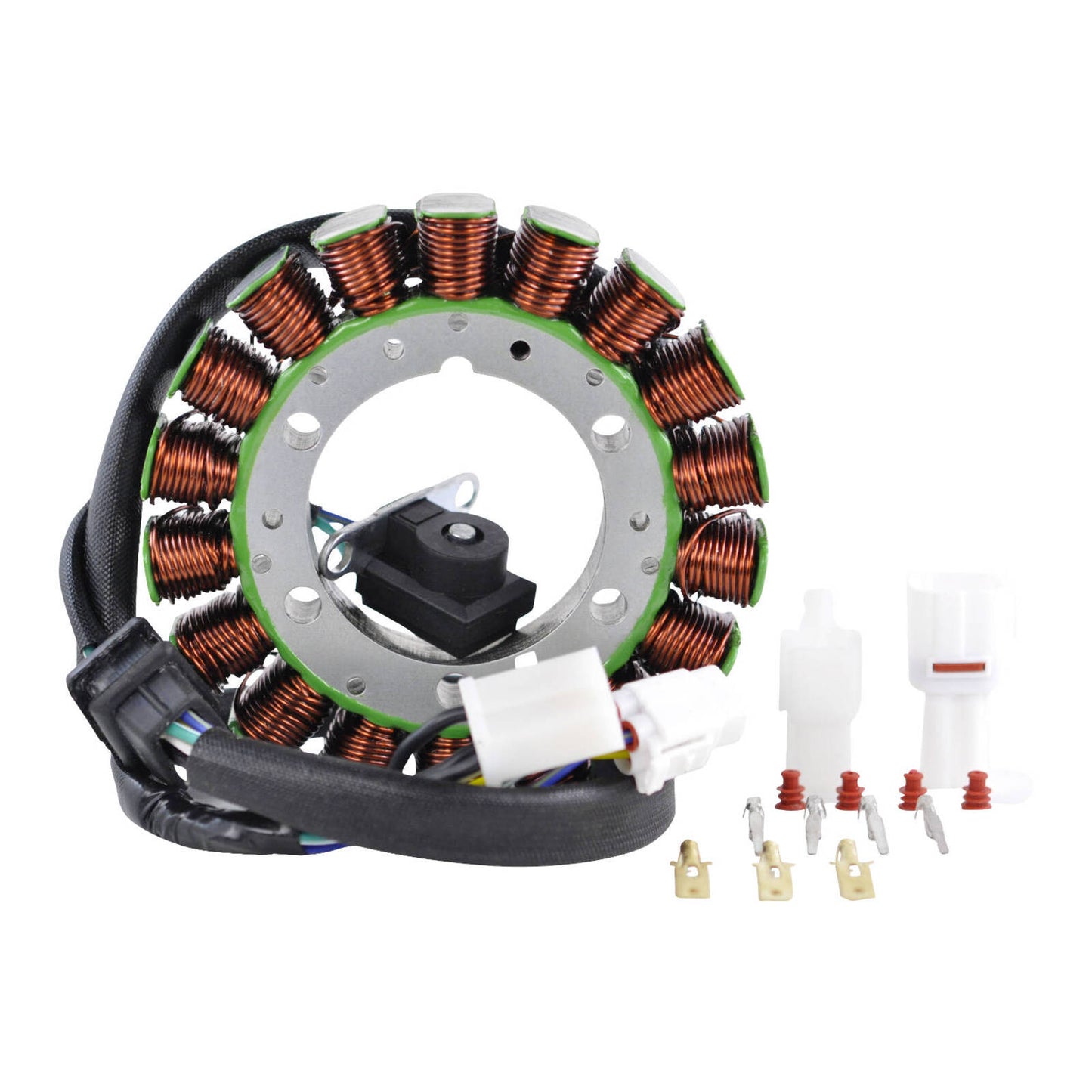

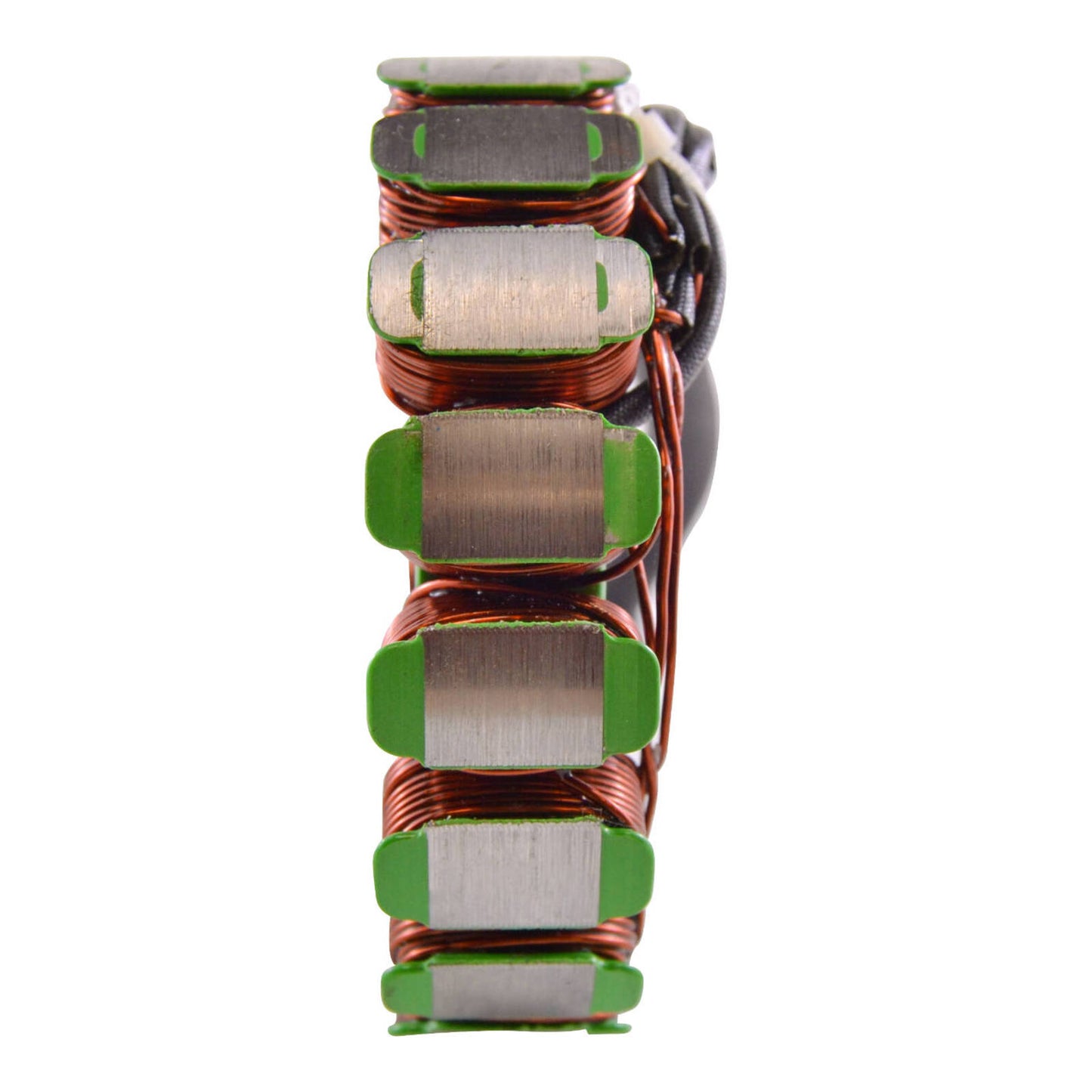

Generator Stator Various Arctic Cat (RM01285)

Plug-and-play replacement generator stator from RM Stator.

Dimensions:

• Interior diameter: 54mm
• Exterior diameter: 114mm
• Thickness: 18mm
• Length of wires stator to grommet: 140mm
• Length of wires grommet to plug: 320mm
• Length of pickup coil's wire to grommet: 95mm

Other specifications:

• Number of wires: 7
• Number of plugs: 2
• Number of pins: 7
• Wire to wire resistance:
  • Alternator: Black between each Black = 0.4 ohms +-20%
  • Pickup: Blue to Green = 185 ohms +/-20%
  • Position Sensor: White to Yellow = 0.2ohms +/-20%

Details:

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested
