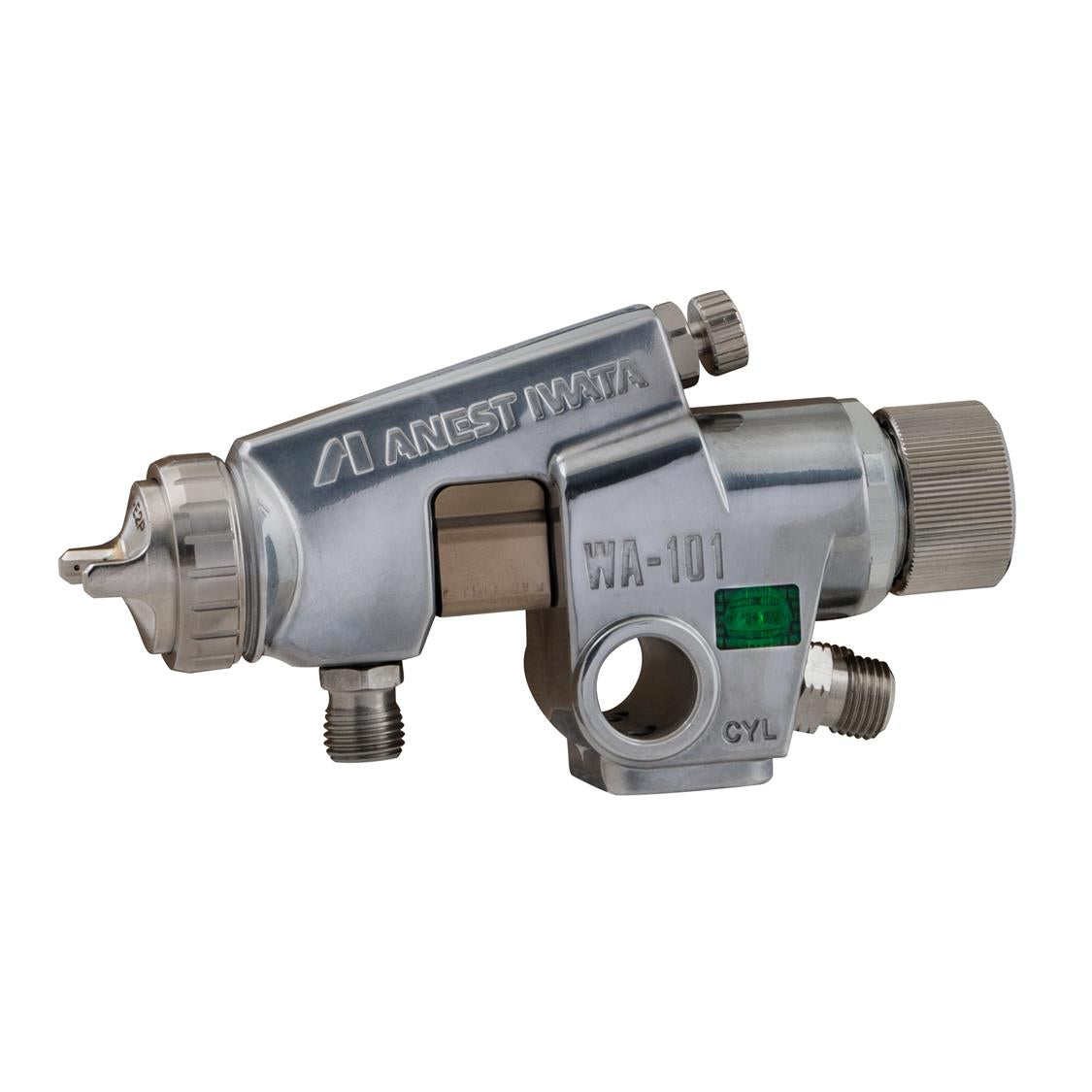

IWATA SUCTION SPRAYGUN WA101 1.0MM AUTOMATIC E2P CAP

WA101 - Compact High TEC Automatic Spray Gun High transfer efficient, greater than 65% on the job Less overspray = less wastage Even paint coverage Fast operation Quick response shut off valve Air Caps stay cleaner Teflon needle packing Ideal for waterborne materials Optional air fan adjuster for WA100 part no. 93811640

Part No.	Fluid Nozzle Size [mm]	Air Pressure@ Gun Inlet [bar]	Air Consumption [l/min]	Fluid Output [ml/min]	Fan Pattern [mm]	Cap #
WA101R05P	0.5	2.9	40	20	35	Round
WA101082P	0.8	2.9	270	150	190	E2P
WA101102P	1.0	2.9	270	200	220	E2P
WA101132P	1.3	2.9	260	250	230	H2
