Givi Topbox plates

In order to fit a topbox, you will need the specific Givi fitting kit for your bike, and in most cases you will also need a plate.

• Monokey plate options are: M3 / M5 / M7 / M8A / M8B / M9A / M9B / M10

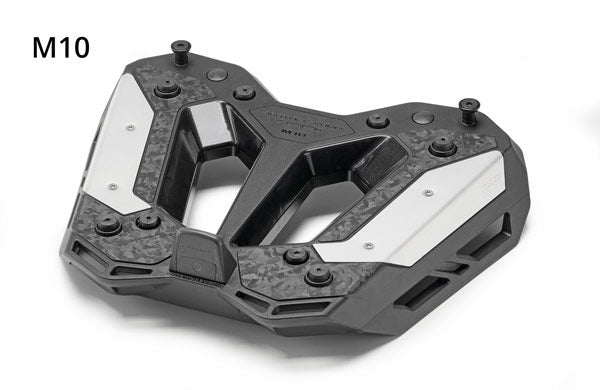

  (note, M10 plate not compatible with Alaska series top cases)
• Monolock plate options are: M6M / M5M / MM

	Monokey								Monolock
Rack type:	F	SR / FZ							F	SR / FZ
	M3	M5	M7	M8A	M8B	M9A	M9B	M10	MM	M6M	M5M
Nylon	Yes	Yes	Yes					Yes		Yes	Yes
Aluminium				Silver	Black	Silver	Black	Silver	Black
Anti vibration								Yes
Stop light kit compatible	Yes	Yes	Yes					Yes	Yes	Yes	Yes
Remote control kit compatible	Yes	Yes	Yes						Yes	Yes	Yes
Compatible with EX1SRA*				Yes	Yes	Yes	Yes
Compatible with EX2M**		Yes	Yes					Yes		Yes	Yes
Bracket for U shaped padlock										Yes
Maximum load	10kg	10kg	10kg	6kg	6kg	6kg	6kg	10kg	3kg	3kg	3kg

*EX1SRA - expandable bag holder giving you the option to swap out hard luggage for soft luggage

** EX2M - bag holder giving you the option to swap out hard luggage for soft luggage

Please refer to the My Motorcycle section of Givi's website to get the correct fitment or contact us for help with your bike.

Universal plates:

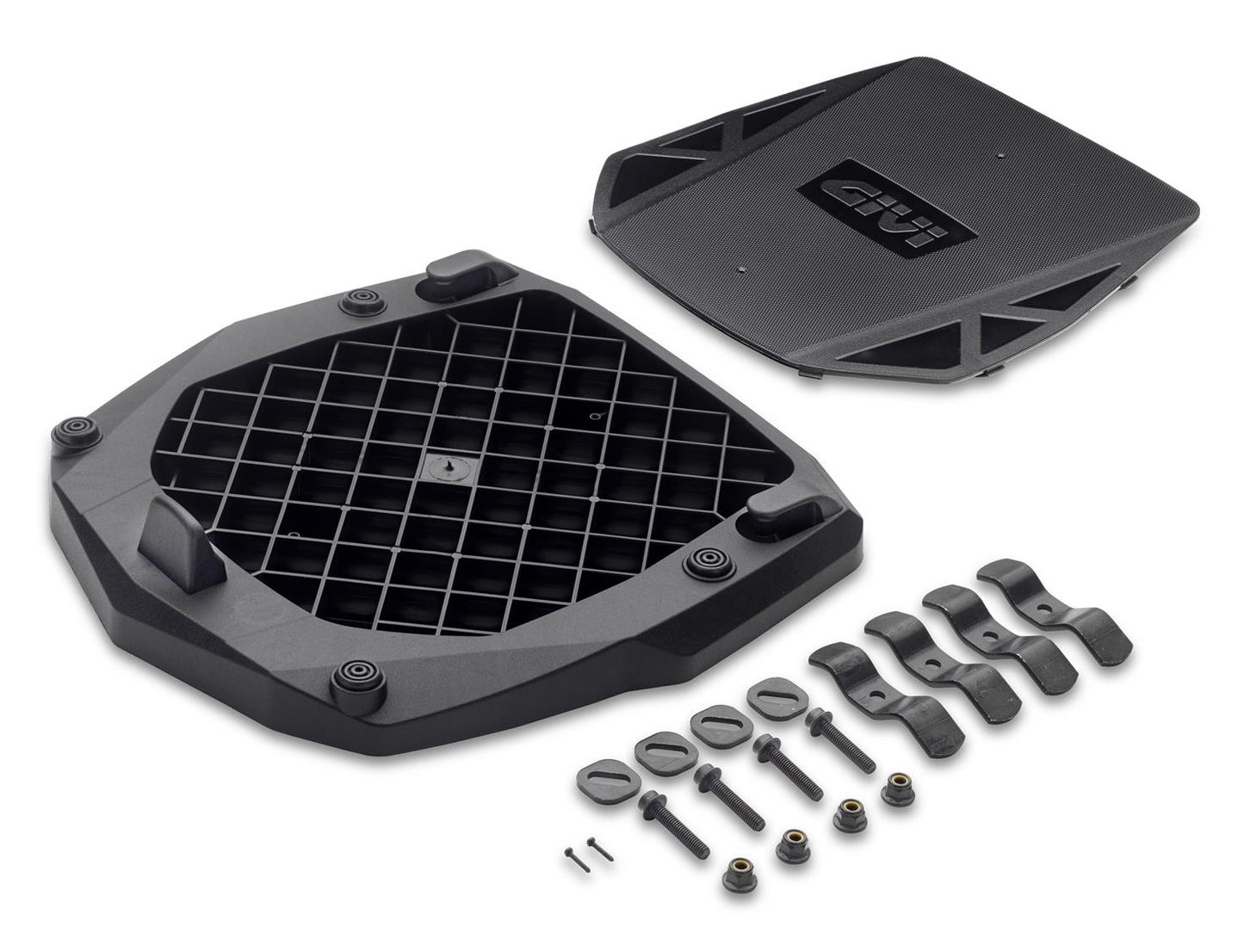

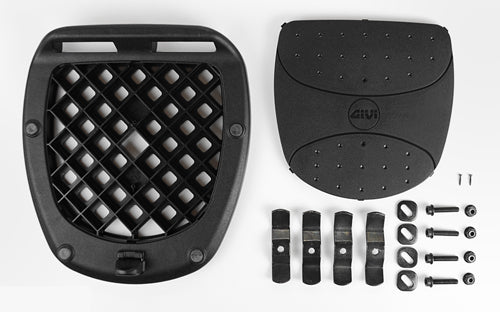

The E251 kit enables you to mount a Monokey top box to a bike’s original rack. It can be used with the stop light kit / remote control kit. Max load 10kg. The Z113C2 is a universal Monolock kit matching what is supplied with Monolock urban cases. Max load 3kg.

A note on load capacity:
The load carrying capacity of the plate is limited by its ability to absorb vibration. This is the reason why nylon Monokey plates typically have a higher load capacity than the aluminium plates. The load capacity specification relates to the contents of the top box and is extra to the weight of the box itself.
