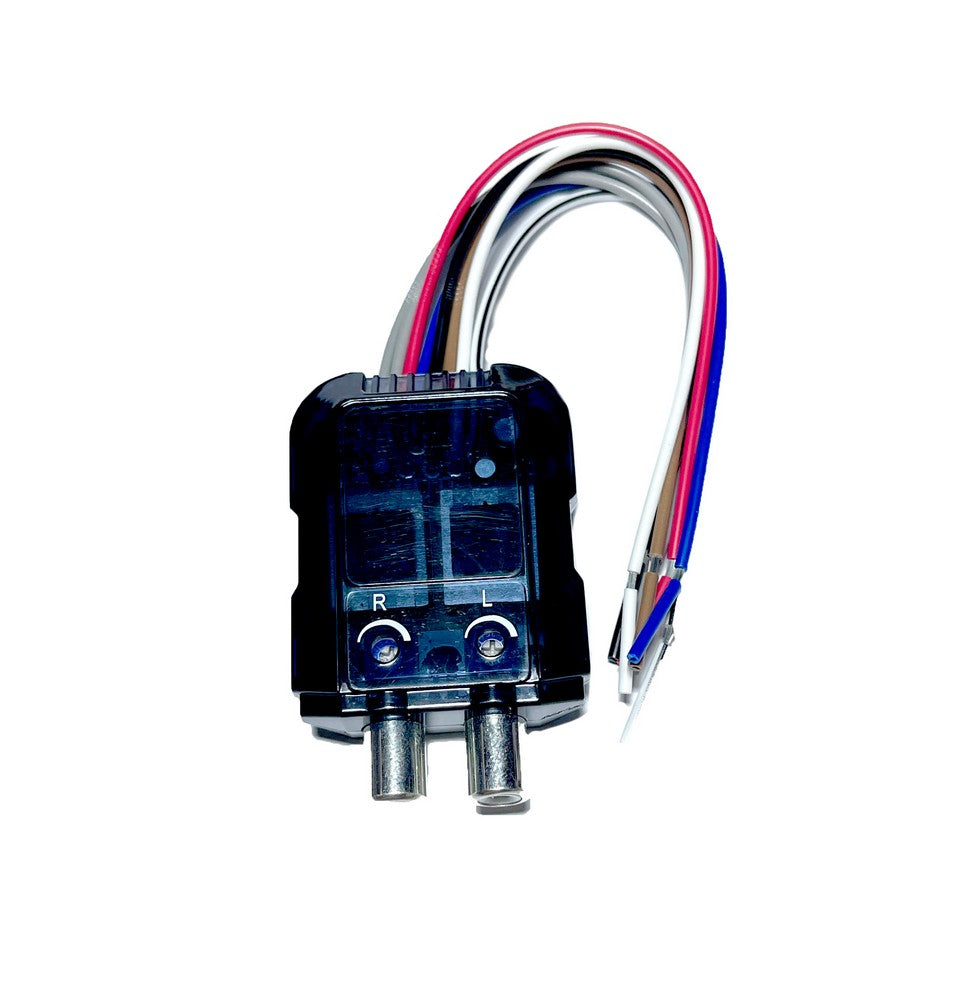

The LOC is designed to convert (2) channels of speaker level audio into (2) channels of line level audio that can be used by OEM amplifiers. It can also be used with OEM radios to add aftermarket amplifiers.
2 Channel Adjustable, Line Output Converter with Built-in Amplifier Remote Generator
2-channel input
Adjustable gain for each channel
40-watt max per channel
12-volt signal sense turn-on
• Universal
• World's smallest L.O.C.
• Adjustable gain for each channel
• 2 channel input
• 12 volt signal sense turn on
• 80 wa max per channel

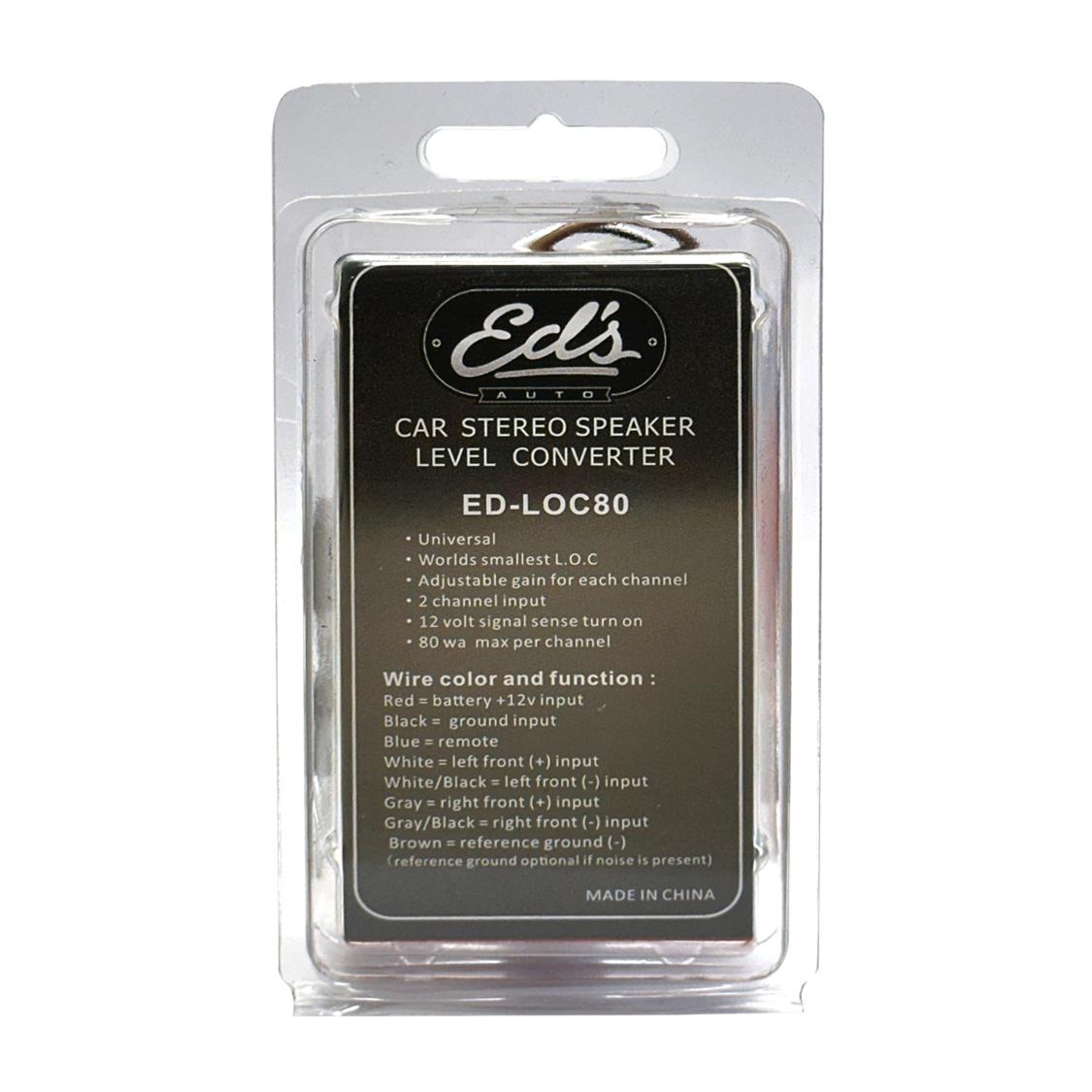

Wire color and function:
Red = Battery +12v input
Black = ground input
Blue = remote
White = left front (+) input
White/Black = left front (-) input
Gray = right front (+) input
Gray/Black = right front (-( input
Brown = reference ground (-)
(reference ground optional if noise is present)
