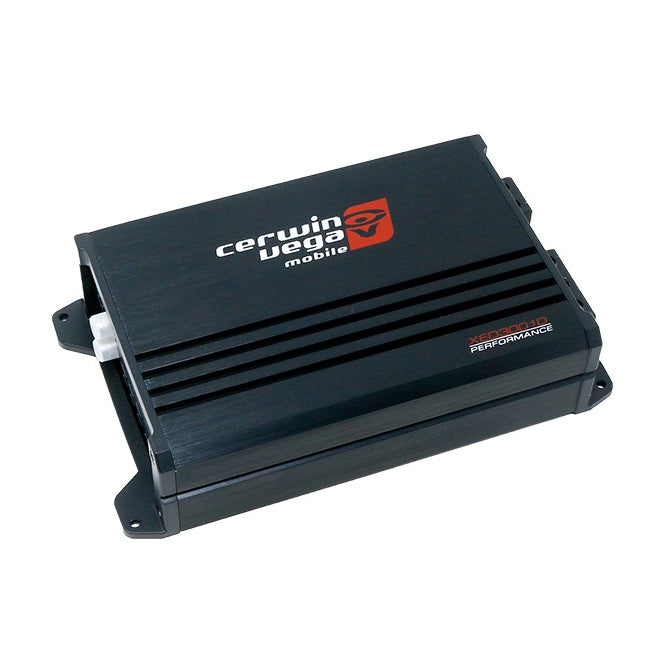

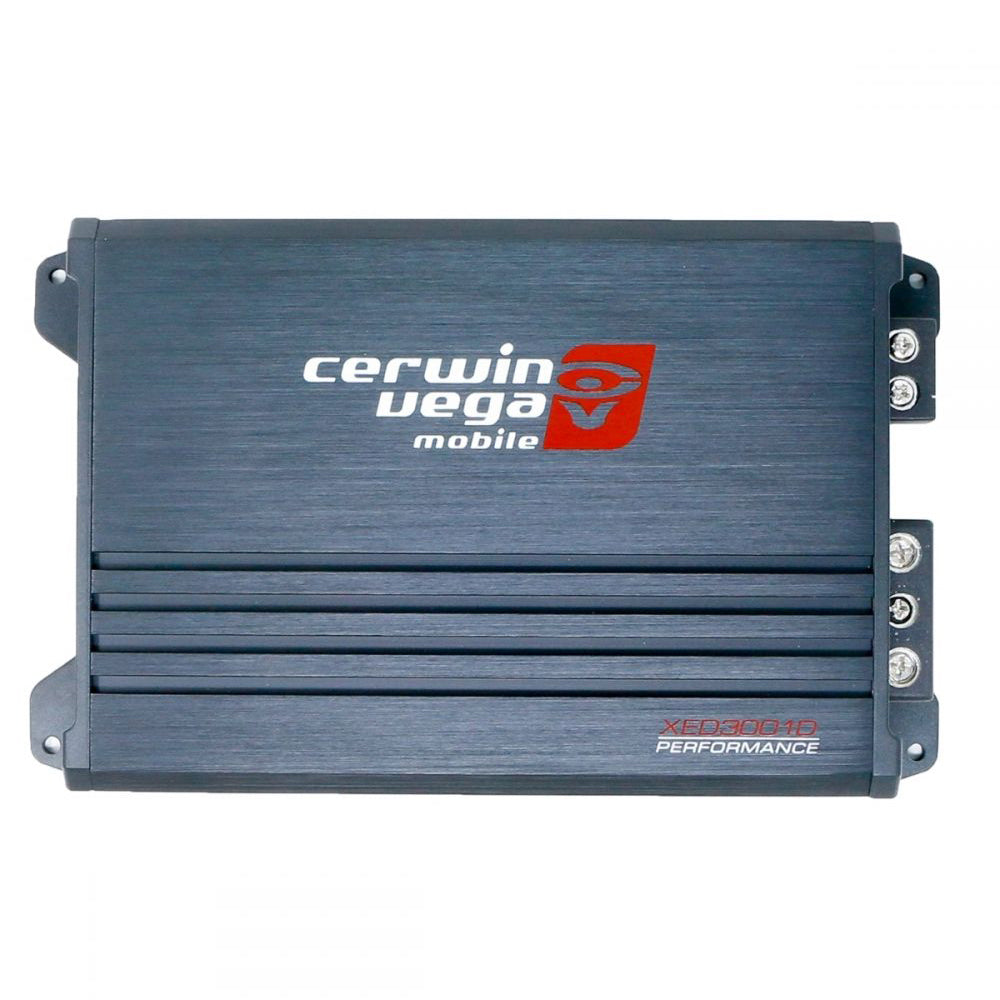

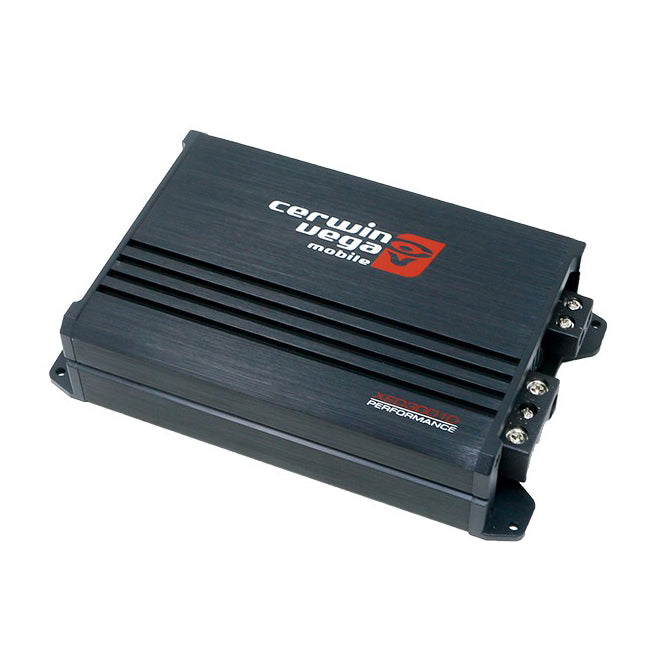

CERWIN VEGA AMPLIFIER XED SERIES MONO 200W RMS @ 4OHM / 300W RMS @ 2OHM

XED3001D - 1 Channel XED Series Amplifier / 300W MAX

Features:

• Latest High-Efficiency Class D Topology
• Compact Size with Ambient backlit logo
• RCA “Pass Thru” output for easy system expansion
• Fully Variable Crossovers (12dB per octave)
• Handles HI and LO level input to 12V
• 2 Ω Stable Stereo and 4Ω Mono (CH3/4) for 3 Ch mode
• Proprietary Vega Bass Boost EQ Up To 12dB

Specifications:

• MONO Amplifier
• 200W x 1 @ 4Ω RMS
• 300W x 1 @ 2Ω RMS
• 2-Ohm Stereo, 4-Ohm Bridged Full Range Operation
• Direct Short, Thermal, & Overload Circuits Protect Amplifier
• 200mV-6V High Level or Low-Level RCA Input
• Variable 12dB High, Low, & Subsonic Crossovers
• Fuse - 20 amp x 2
• Dimensions: 6.3" x 4.7" x 1.8" (160mm x 120mm x 46.5mm)
