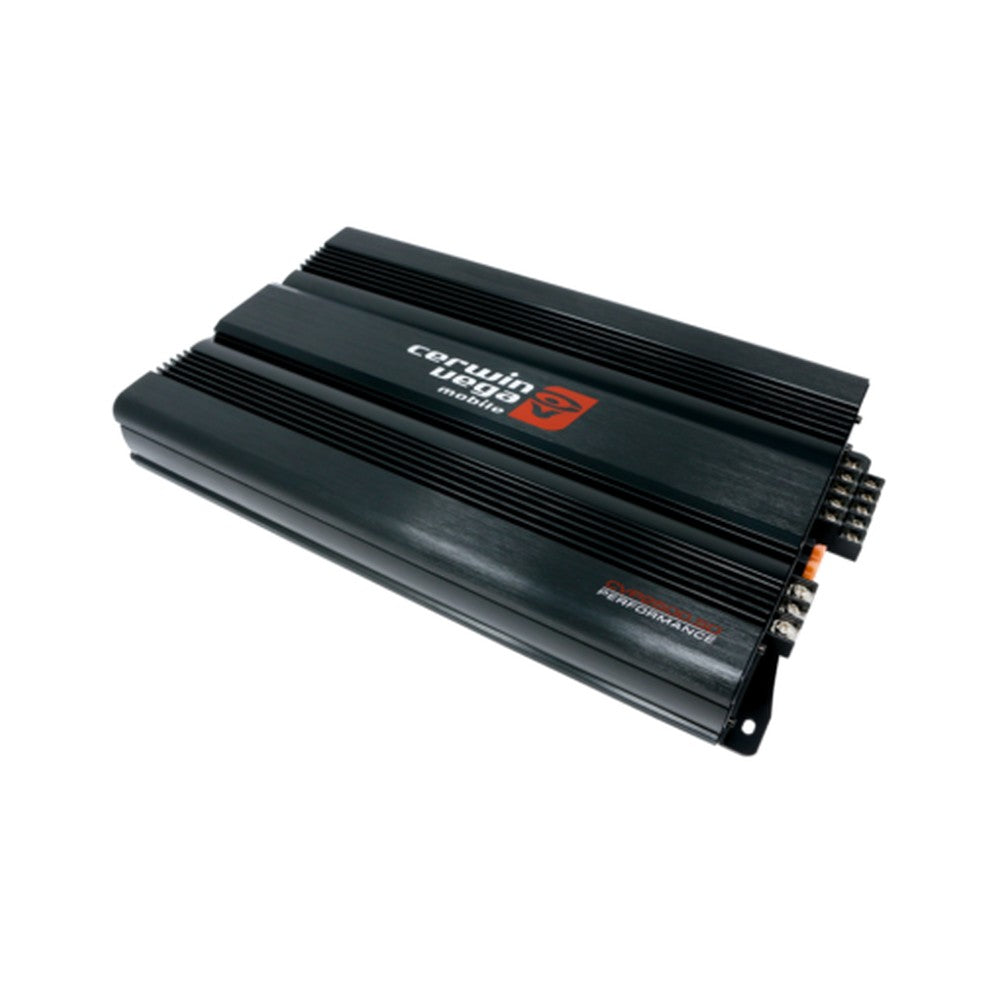

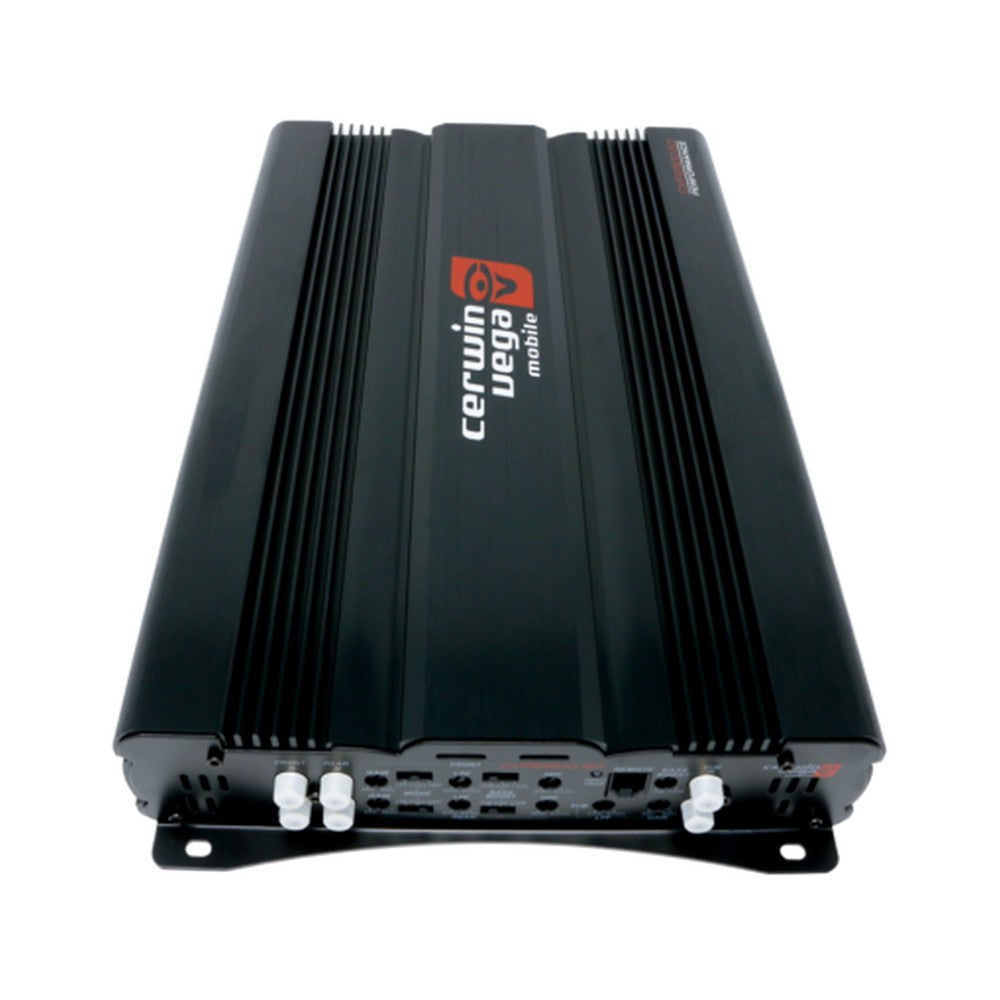

CERWIN VEGA AMPLIFIER CVP SERIES 5 CH 100W RMS X4 + 350W RMS @ 4OHM / 150W RMS X4 + 500W RMS @ 2OHM

CVP2500.5D – 5-Channel 2500W Class A/B Amplifier

Features

• Latest High-Efficiency Class A/B Topology
• Compact Size with Ambient backlit logo
• RCA “Pass Thru” output for easy system expansion

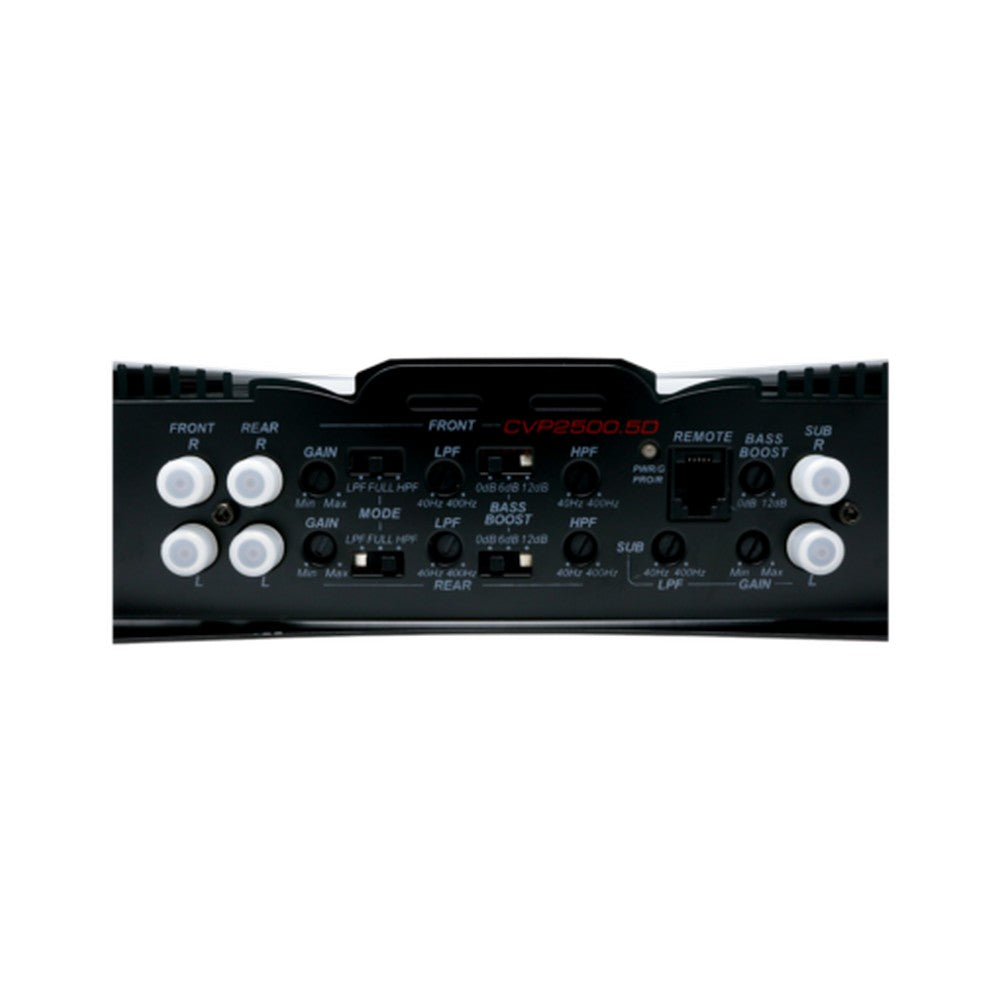

• Fully Variable Crossovers (12dB per octave)
• Handles HI and LO level input to 12V
• Proprietary Vega Bass Boost EQ Up To 12dB

Specifications

• 5 Channel Amplifier
• 150W x 4 + 500W x 1 @ 2Ω RMS
• 100W x 4 + 350W x 1 @ 4Ω RMS
• 300w x 2 + N/A Front and Rear channels Bridged
• Class A/B
• Direct Short, Thermal, & Overload Circuits Protect Amplifier
• Power Supply 10-16VDC
• Sensitivity 200mV-6V
• Variable 12dB High, Low, & Subsonic Crossovers

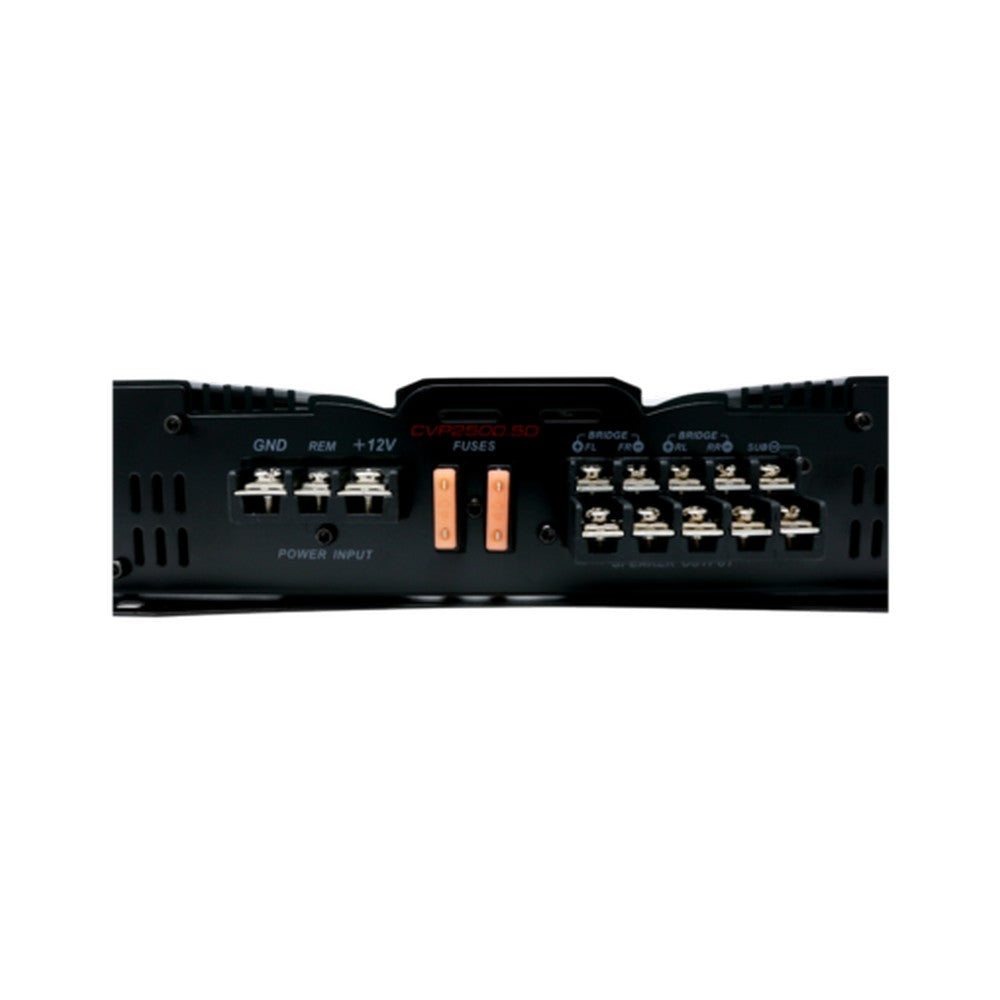

• Fuse Rating - 40 Amp x 2

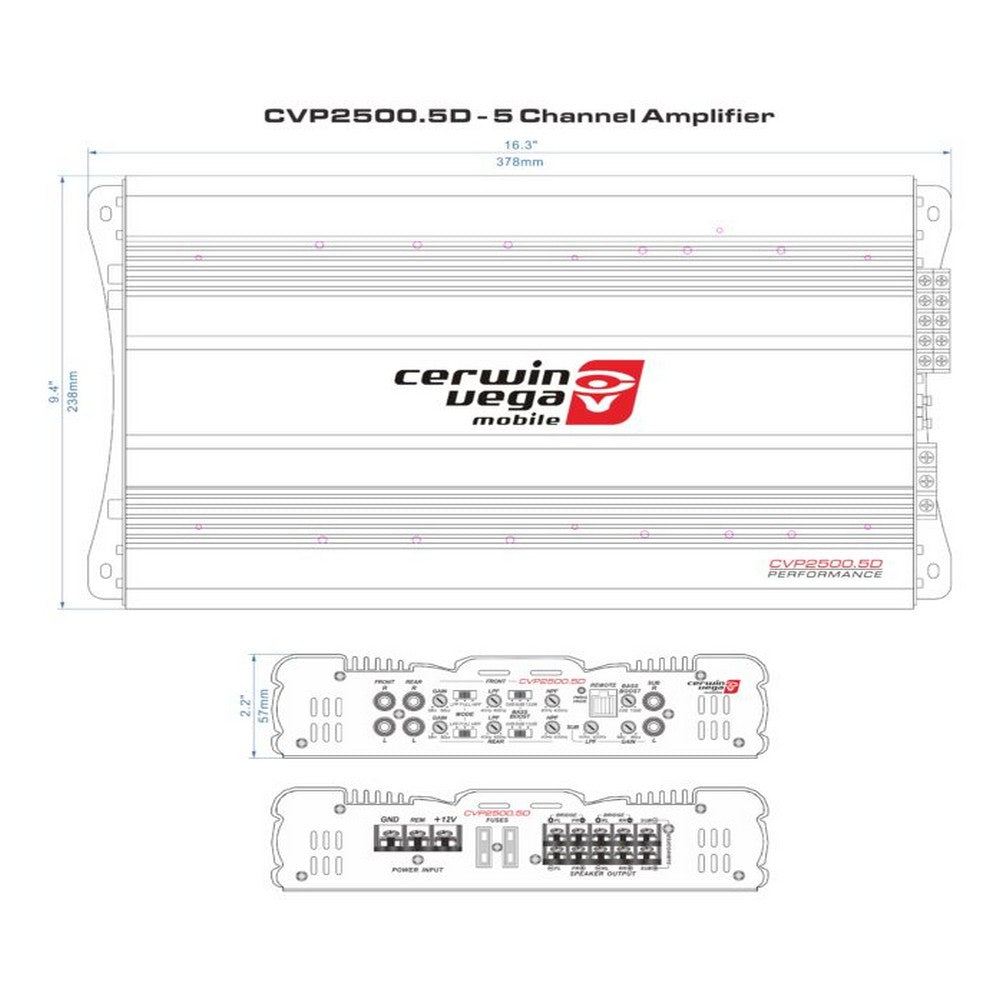

• Dimensions:  14.97″ x 9.38″ x 2.25″ (380mm x 238mm x 57mm)
