FEATURES:
Latest High-Efficiency Class A/B Topology
Compact Size with Ambient backlit logo
RCA “Pass Thru” output for easy system expansion
Fully Variable Crossovers (12dB per octave)
Handles HI and LO level input to 12V
2 O Stable Stereo and 4O Mono (CH3/4) for 3 CH mode
Proprietary Vega Bass Boost EQ Up To 12dB
SPECIFICATIONS
800 MAX Power
2 Channel Amplifier
85W x 2 @ 2O RMS
60W x 2 @ 4O RMS
180W x 1 @ 4O RMS Bridged Mono
2-Ohm Stereo, 4-Ohm Bridged Full Range Operation
Direct Short, Thermal, & Overload Circuits Protect Amplifier
200mV-6V High Level or Low-Level RCA Input
Variable 12dB High, Low, & Subsonic Crossovers
Fuse - 30 amp x 1

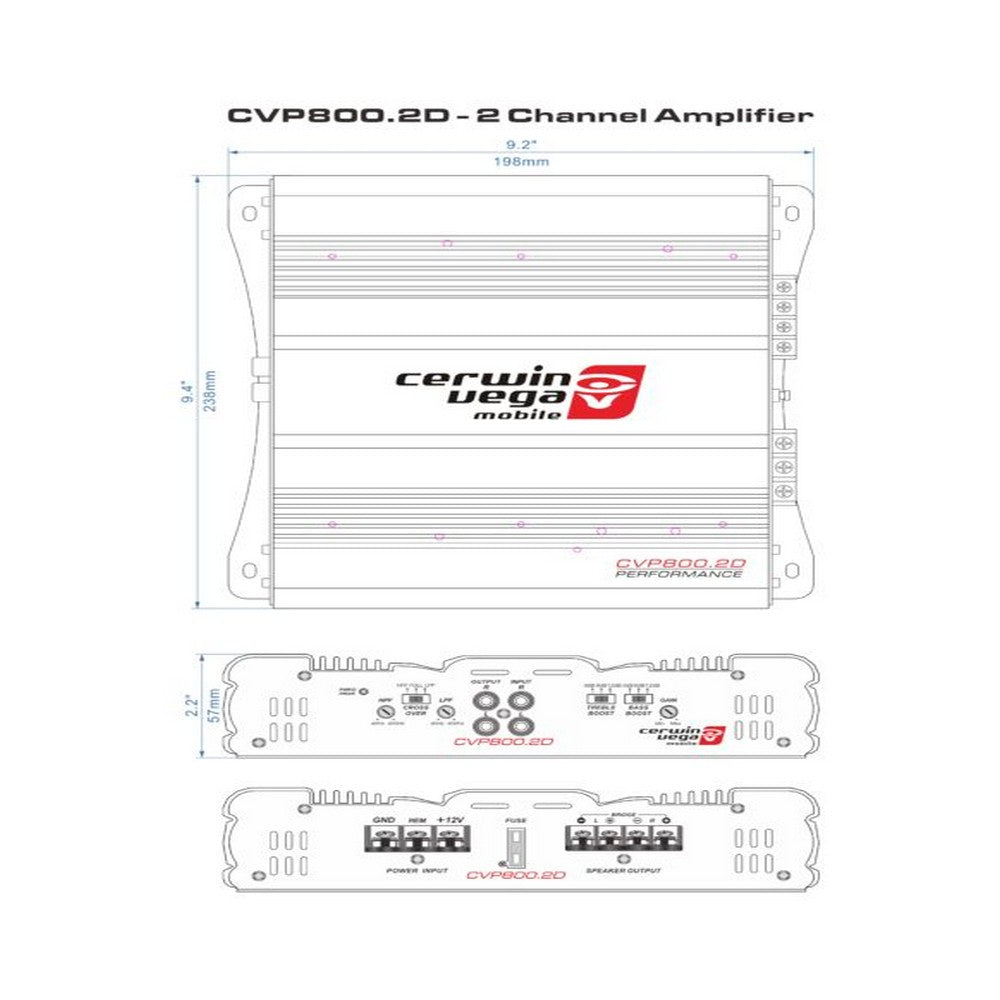

Dimensions: 7.88” x 9.38” x 2.25” (200mm x 238mm x 57mm)
