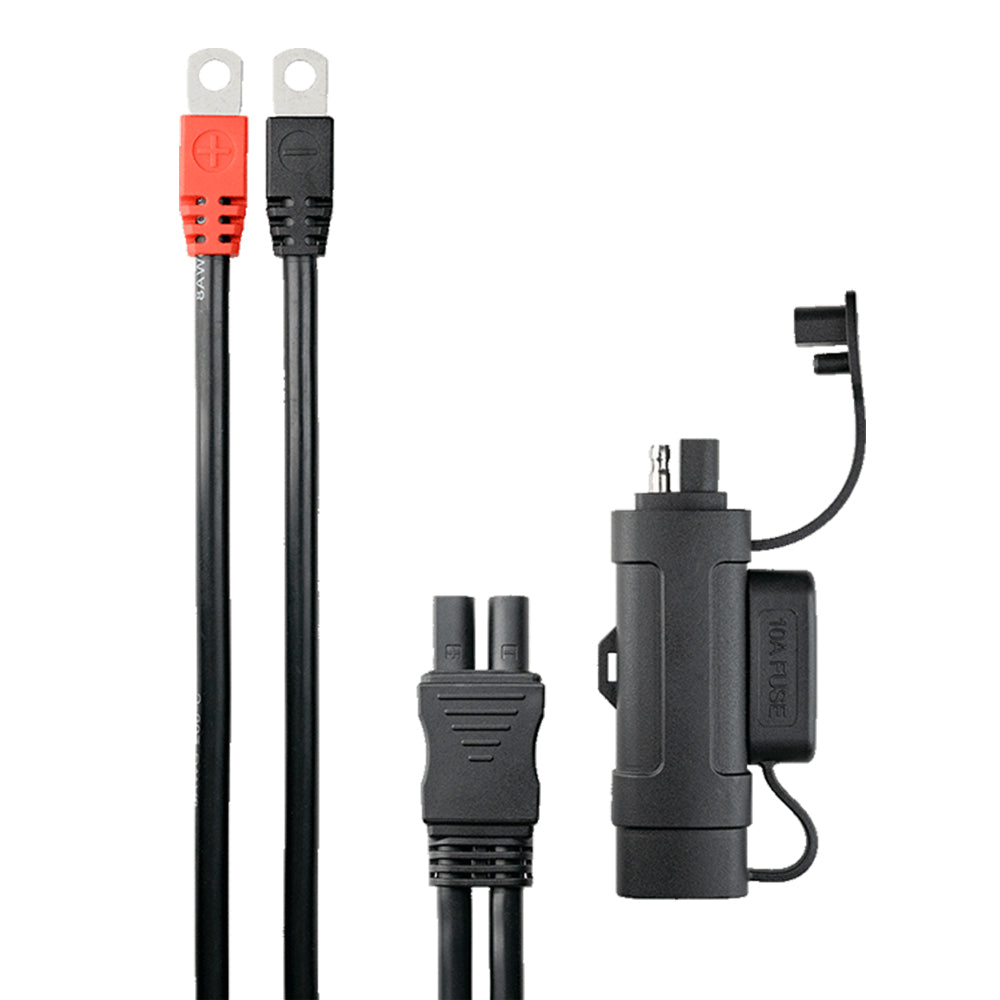

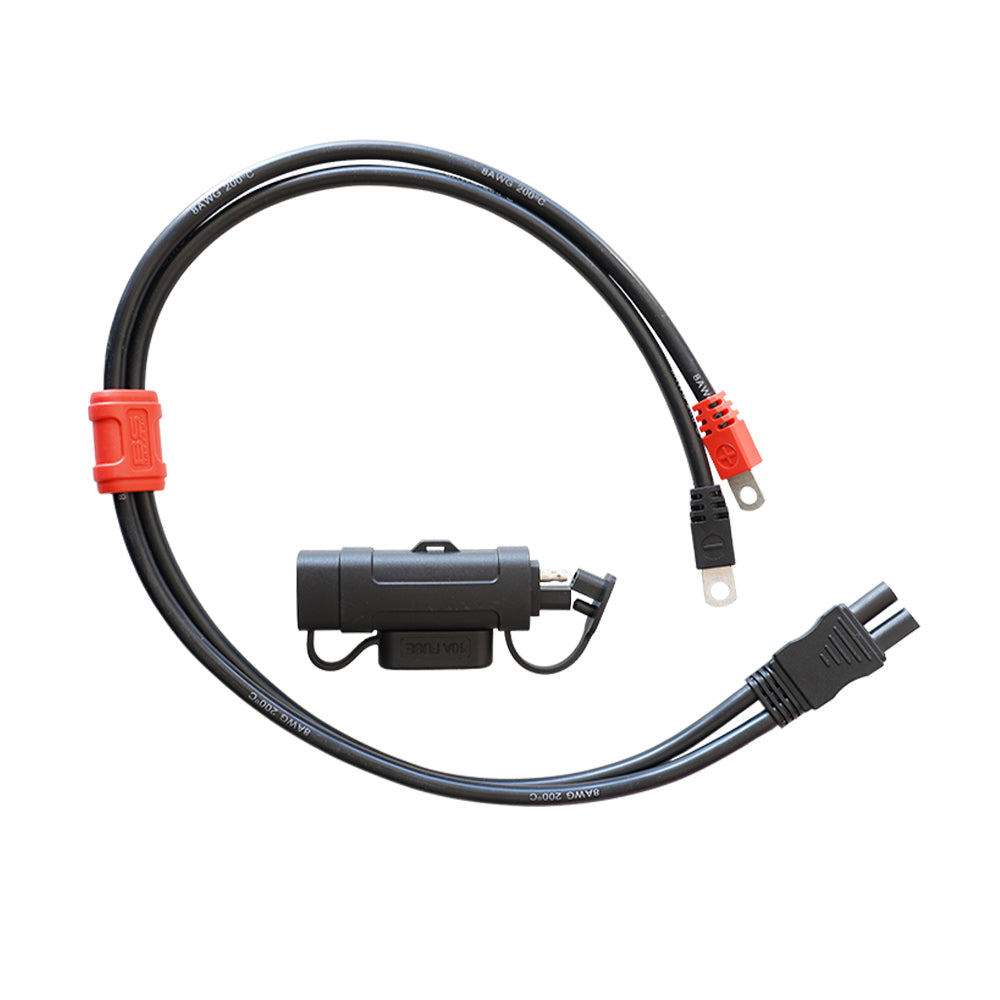

The PA01 MAX is a 2-in-1 eyelet connector lead, the ideal solution when a battery is hard to reach, hidden, or when clamps cannot be used. Fitted permanently to the battery terminals with M6 eyelets, it gives a quick and secure way to either charge the battery with an SAE charger or jump start it with the Power Box MAX booster, thanks to its dual connection: an SAE plug and a dedicated Power Box MAX plug.
Suits all 12V motorcycle and vehicle batteries, lead acid or lithium.
Specifications:
Connections: SAE plug and Power Box MAX plug
Battery terminals: M6 eyelets (red positive, black negative)
Fuse (A): 10
Wire length (cm): 60
Wire gauge: 8AWG (8.37mm²)
Battery voltage (V): 12
Battery technology: Lead Acid / Lithium (LiFePO4)
Features:
2-in-1 adapter with SAE plug connection and Power Box MAX plug
For all 12V motorcycle and vehicle batteries
M6 eyelet terminals for a permanent fitment
10A in-line fuse
60cm wire, 8AWG
Safe and easy to connect
Charging: Connect the SAE adapter to the eyelet lead, then plug the other end into any SAE-equipped charger, including the BS 10, BS 15, BS 30, BS 30 MAX and BK 20. Jump starting: Plug the Power Box MAX plug directly into the Power Box MAX booster. The PA01 MAX is only compatible with the Power Box MAX, not the Power Box PB-02 or Power Box AIR.
